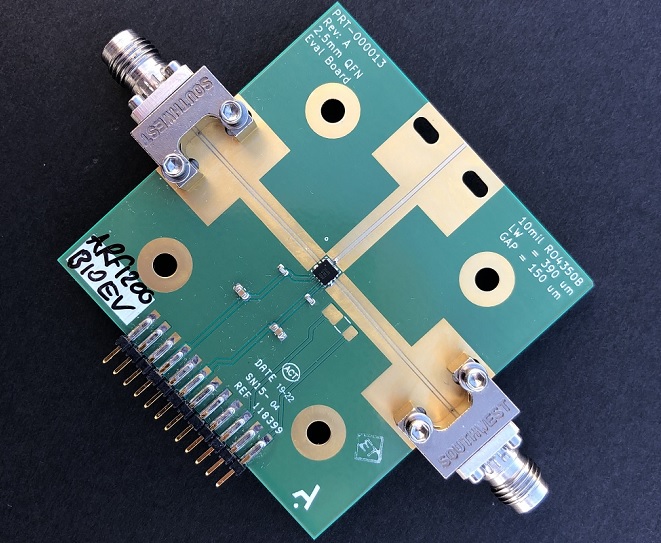

Category: - Principal: - Product: ARF1200Q2 (20 - 31.5 GHz) Demo Board For Low Noise Amplifier, Part number: ARF1200Q2 - Available from Melcom


  • 20—31.5 GHz Low Noise Amplifier
  • 20 dB Gain
  • 3.5 dB Typical Noise Figure
  • 2 dBm Typical Output P1dB
  • > 12 dB Return Loss Input/Output
  • +3.3 V Power Supply, +3.3V Bias Control, 15 mA
  • 16 Lead PQFN, 2.5 × 2.5 mm2


Melcom supply state of the art analogue, RF & Microwave components, multi-function modules and sub-systems.

Product name: ARF1200Q2 (20 - 31.5 GHz) Demo Board For Low Noise Amplifier categories:

ARF1200Q2 Suitable for the requirements of the professional electronics market Defence, Space, Test & Measurement, Satcom, Civil Aerospace & Avionics, Broadcast & Commercial Comms, Industrial, Scientific & Medical, Environmental Test.

Part number: ARF1200Q2 is in stock, contact us for more information or to order.

If you can’t find the product you require please contact us for further information on our extensive range of off-the-shelf and bespoke products or for a quote.

Melcom electronics specialise in Active and Passive Components, Multi-function Modules and Sub-Systems of diverse technologies spanning the frequency spectrum DC to 100 GHz.
